2024.04.22

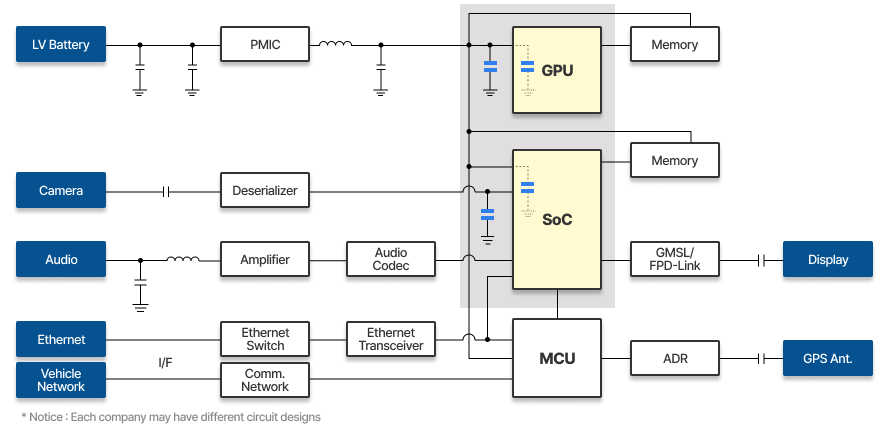

Application Guide – Automotive – ADAS(Advanced Driver Assistance System) ECU

ADAS ECUに適用されるSoC、GPUなど半導体 ICの高性能化に伴い、限られた空間内に実装可能な小型・高容量MLCCが求められます。

また、高温動作保証、Fail Safeなど高信頼性に対する要求が加速しています。

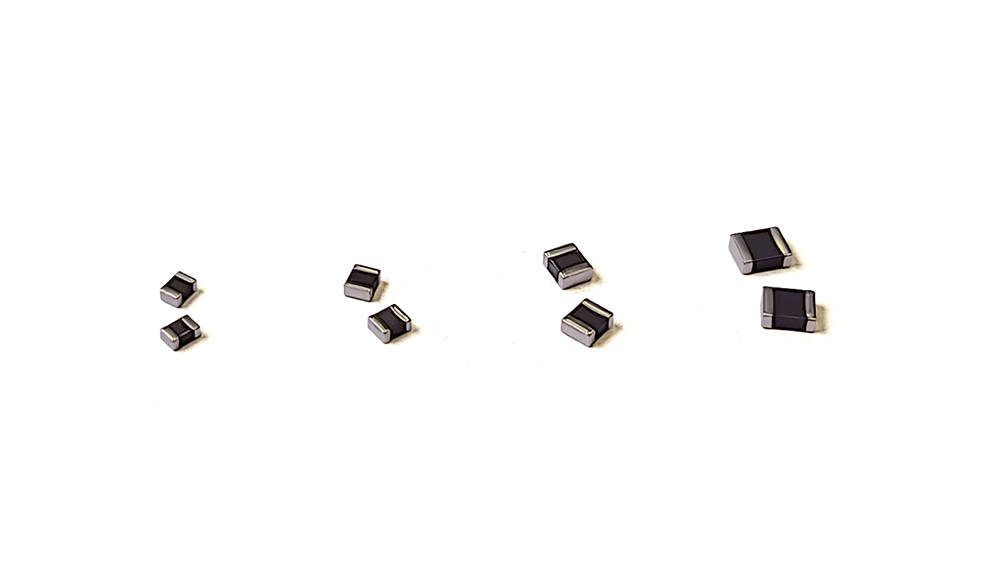

ADAS ECUに使用されるサムスン電機の小型・高容量MLCCのラインナップをご紹介します。




MLCC Trend : Small Size & High Capacitance

▷ Space Reduction

▷ High Reliability

 → Recommendation :  X7* PN Series



Size

(mm/inch)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

1608/0603

4

X7T

22㎌

CL10Z226MR96PN#

In MP

Available

1608/0603

6.3

X7T

10㎌

CL10Z106MQ9VPN#

In MP

Available

1608/0603

16

X7S

4.7㎌

CL10Y475KO96PN#

In MP

Available

1005/0402

16

X7S

1㎌

CL05Y105KO66PN#

NEW

Available

0603/0201

4

X7T

1㎌

CL03Z105MRR6PN#

In MP

Available

0510/0204

4

X7T

1㎌

CLL5Z105MR41PN#

In MP

Available
