Tech - Article 2025.03.19

Application Guide > Automotive > AVN(Audio Video Navigation)

Automotive AVN (Audio Video Navigation) enhances drivers' visibility and provides an immersive entertainment experience through advancements in display technologies such as HUD (Head-Up Display) and curved screens, as well as strengthened connectivity. Furthermore, as autonomous driving becomes more widespread, various advanced technologies such as AVN system integration, voice control, and artificial intelligence are increasingly being adopted.



Samsung Electro-Mechanics offers a lineup of high-reliability, compact, high-capacitance MLCCs for power stabilization of high-performance ICs applied to AVN, and continues to expand its supply.

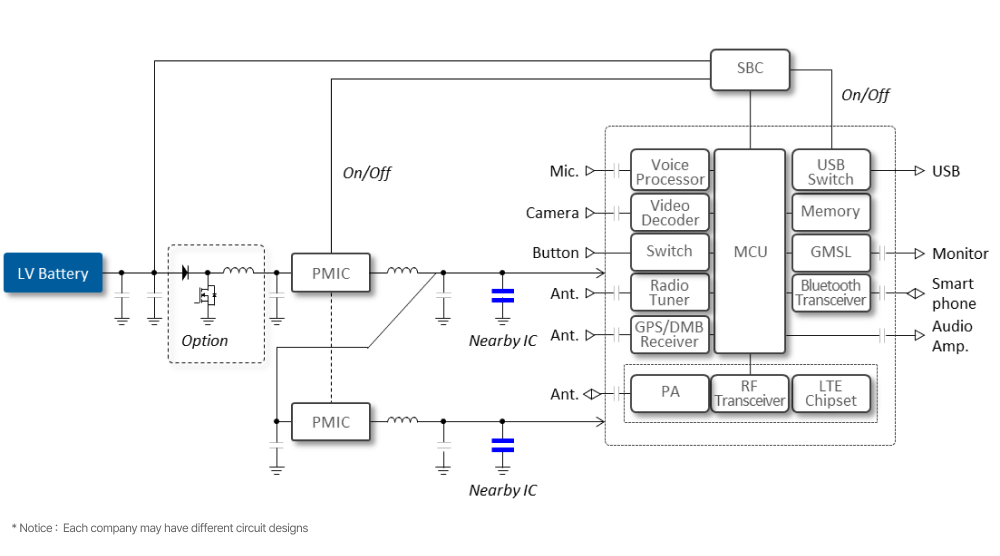

전장용 AVN(Audio Video Navigation) 관련 회로도 이미지

MLCC Trend : Miniaturization, Voltage Stability

▷ High Reliability

▷ High Capacitance

 → Recommendation :  X6S Series


Size

(inch/mm)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

0603/160810Vdc

X6S

22㎌

CL10X226MP91IN#

NEW

Available

0603/1608

6.3Vdc

X6S

22㎌

CL10X226MQ91IN#

In MP

Available

0402/1005

6.3Vdc

X6S

4.7㎌

CL05X475MQQ1IN#

In MP

Available

0201/0603

10Vdc

X6S

1㎌

CL03X105MPR1IN#

In MP

Available

0201/0603

6.3Vdc

X6S

1㎌

CL03X105MQR1IN#

In MP

Available

*The products are AEC-Q200 certified automotive-grade MLCCs designed specifically for IVI(In-Vehicle Infotainment) applications.
