技术 - Article 2024.04.22

Application Guide – Automotive – ADAS(Advanced Driver Assistance System) ECU

随着应用在ADAS ECU上的SoC、GPU等半导体IC的高性能化，要求在有限的空间内可使用的小型、高容值MLCC。 同时对高温工作保证，失效安全(Fail Safe)等高可靠性的要求也在提高。

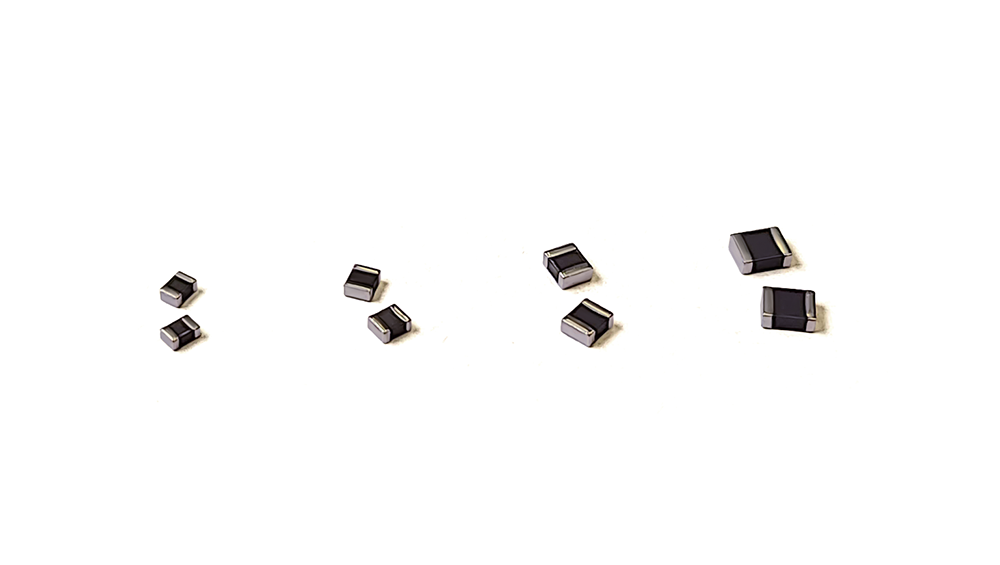

以下介绍在ADAS ECU上使用的三星电机小尺寸、高容值MLCC line-up。




MLCC 趋势 : 小尺寸 & 高容值

▷ 节省空间

▷ 高可靠性

 → 推荐解决方案 :  X7* PN Series



Size

(inch/mm)

Rated Voltage

[Vdc]

TCC

Capacitance

Part Number

MP

Status

Sample

Availability

0603/1608

4

X7T

22㎌

CL10Z226MR96PN#

In MP

Available

0603/1608

6.3

X7T

10㎌

CL10Z106MQ9VPN#

In MP

Available

0603/1608

16

X7S

4.7㎌

CL10Y475KO96PN#

In MP

Available

0402/1005

16

X7S

1㎌

CL05Y105KO66PN#

NEW

Available

0201/0603

4

X7T

1㎌

CL03Z105MRR6PN#

In MP

Available

0204/0510

4

X7T

1㎌

CLL5Z105MR41PN#

In MP

Available
