Chip Resistor

首页产品被动元件Chip Resistor

Chip电阻具有限制直流电流或交流电流的性质。利用该性质，在电路内部起到降低电压或使电流恒定的作用。电阻基本上遵循 Ohm的法则，同时使用电导度高或低的物质，实现所要求的的阻值。Chip电阻的主要电阻体材料有 Ag, Pd, RuO₂, CuNi 等，具备一般型、排阻、电流感测微欧姆电阻、抗硫化贴片电阻、高电力电阻和环保产品等。

Lineup Summary

Chip Resistor Catalog

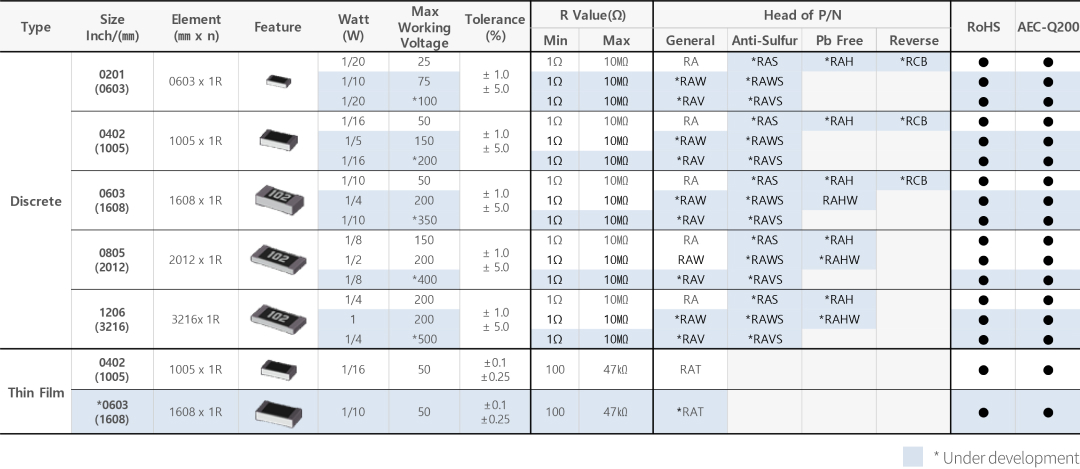

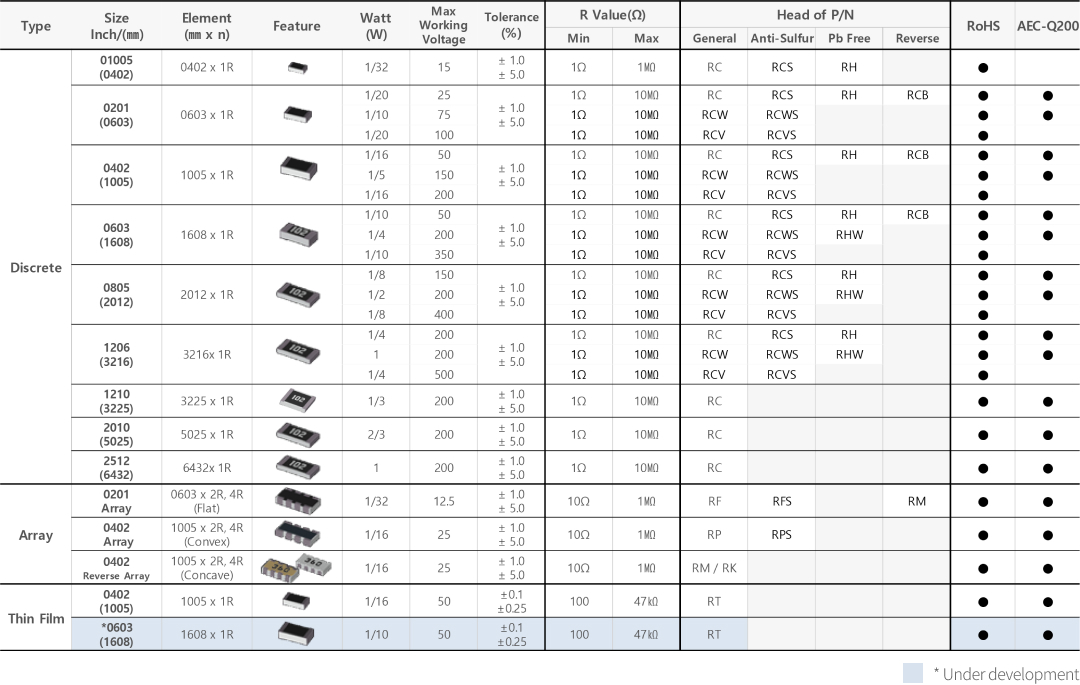

Lineup Summary Overall Resistors Table
Chip Resistor Catalog

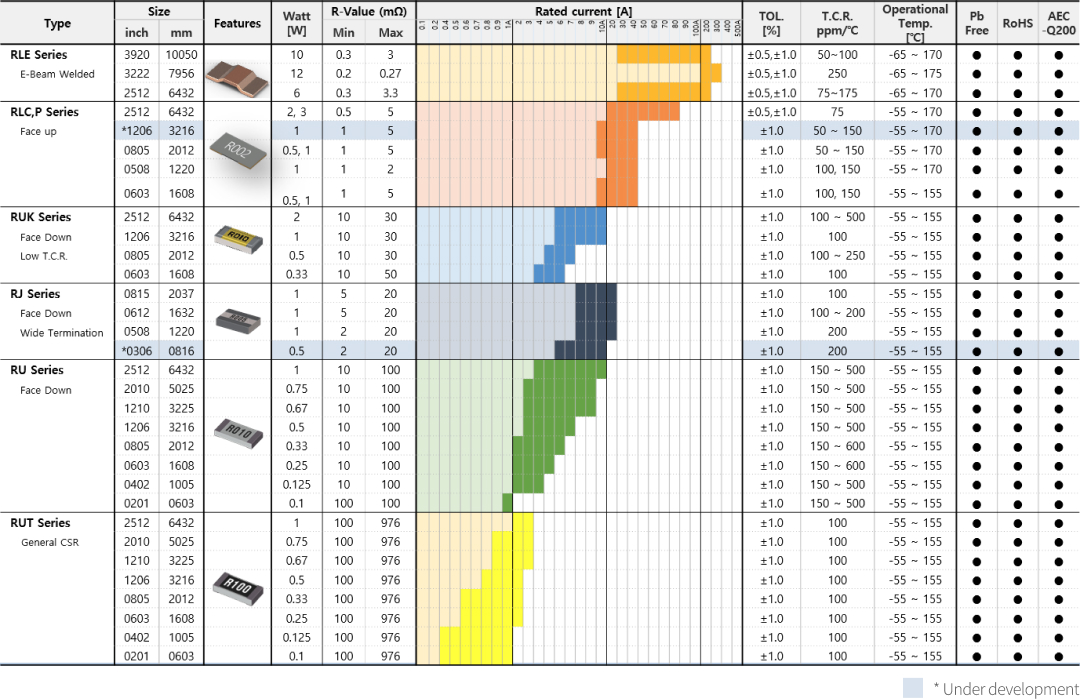

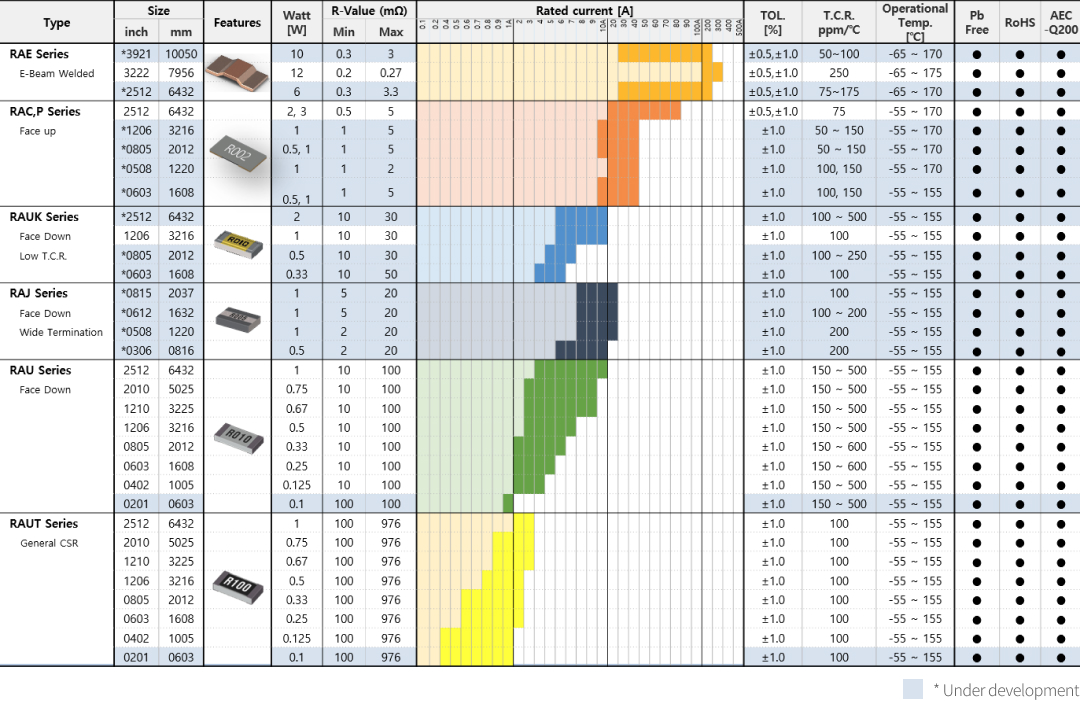

Lineup Summary Current Sensing Resistors Table

首页​

一般厚膜电阻​

利用电路内妨碍电流流动的性质，具有调节电流，增强电压的功能。在陶瓷体上印刷电阻、电极、保护材料，将实现电路中要求的可SMD的精密贴片电阻。

应用领域
智能手机、电脑、数字电视、相机、显示器、存储模块、游戏机、DC-DC转换器 等等。
Product Search

  • 1. 电极 (Ag)
  • 2. 电阻体
  • 3. 保护体
  • 4. 溅射 (镍铬)
  • 5. 镀层 (镍)
  • 6. 镀层 (锡)
Wide Selection of Size & Wide Resistance Range
能够实现多种尺寸 & 大范围阻值
Excellent Characteristics
优秀的电特性和机械特性​
High Speed Automatic Chip Placement on PCBs
在PCB上能高速安装的芯片电阻
Lineup
General
General Lineup - Type, Size Inch/(㎜), Feature, Watt [W], Resistance Tolerance [%], Resistance Range, Operation Temperature Range [℃]
Type Size Inch / (mm) Feature Watt [W] Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RC0402 01005(0402) 1/32 ±1%
±2%
±5%		 1~1MΩ -55~125℃
RC0603 0201(0603) 1/20 1~10MΩ
RC1005 0402(1005) 1/16 ±0.5%
±1%
±2%
±5%		 -55~155℃
RC1608 0603(1608) 1/10
RC2012 0805(2012) 1/8
RC3216 1206(3216) 1/4
RC3225 1210(3225) 1/3
RC5025 2010(5025) 2/3
RC6432 2512(6432) 1
RCB0603 0201(0603) 1/20 ±1%
±2%
±5%		 1~10MΩ -55~125℃
RCB1005 0402(1005) 1/16 ±0.5%
±1%
±2%
±5%		 -55~155℃

排阻

由2至4个独立电阻所组成，与使用多个单品时相比，可减少PCB上的实际安装面积。能够减少安装次数，节约安装时间和费用，SMT生产性提升效果显著，因此其使用范围正在渐渐拓宽。排阻主要在半导体企业中使用，其质量和性能都得到了认可。

应用领域
Damping电阻、Pull-Up/Down电阻、Termination电阻、存储模块
Product Search

  • 1. 保护体
  • 2. 电阻体
  • 3. 电极 (银)
Various Structure
根据用途不同，拥有位于基板上、下面的多种结构​
Small Array Resistor
小型、轻量、薄型 0603排阻(安装面积比1005排阻减少了58%)
Lineup
Array
Array Lineup - Type, Size Inch/(㎜), Element (㎜ x n), Feature, Watt [W], Resistance Tolerance [%], Resistance Range, Operation Temperature Range [℃]
Type Size
Inch/(㎜)		 Element
(㎜ x n)		 Feature Watt
[W]		 Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RM062P 0302(0806) 0603 x 2R 1/32 ±5% 10~1MΩ -55~125℃
RM064P 0502(1406) 0603 x 4R
RF062P 0302(0806) 0603 x 2R
RF064P 0502(1406) 0603 x 4R
RM102P 0404(1010) 1005 x 2R 1/16 ±1%
±2%
±5%		 1~1MΩ -55~155℃
RM104P 0804(2010) 1005 x 4R
RK102P 0404(1010) 1005 x 2R
RK104P 0804(2010) 1005 x 4R
RP102P 0404(1010) 1005 x 2R
RP104P 0804(2010) 1005 x 4R

电流感测电阻 (厚膜类型)

用于电流感测的厚膜超低电阻，为减少电阻值误差，采用电阻体位于下面的相反安装结构。专为高功率额定值和低温度系数设计的产品。​

应用领域
CPU、DC-DC转换器、逆变器电源供应装置、移动设备、BMS(电池管理系统)
Product Search

  • 1. 电极 (铜)
  • 2. 电阻体 (铜镍)
  • 3. 保护体
  • 4. 溅射 (镍铬)
  • 5. 镀层 (铜)
  • 6. 镀层 (镍)
  • 7. 镀层 (锡)
厚膜工艺​
高功率、低温度系数特性的多种低电阻值(CSR)系列​
减少阻值误差结构
电阻体下面结构的相反安装设计​
Lineup
CSR (Thick Film)
*Under development
CSR (Thick Film) Lineup - Series, Type, Size Inch / (mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Series Type Size
Inch/(㎜)		 Feature Watt
[W]		 Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RUK RUK1608 0603(1608) 1/2 ±1% 0.010~0.030Ω -55~155℃
RUK2012 0805(2012) 1/2 ±1% 0.007~0.030Ω
RUK3216 1206(3216) 1 ±1%
RUK6432 2512(6432) 2 ±1%
RU RU1005 0402(1005) 1/8 ±1% 0.020~0.100Ω -55~155℃
RU1608 0603(1608) 1/4 ±1% 0.010~0.100Ω
RU2012 0805(2012) 1/3 ±1%
RU3216 1206(3216) 1/2 ±1%
RU3225 1210(3225) 2/3 ±1%
RU5025 2010(5025) 3/4 ±1%
RU6432 2512(6432) 1 ±1%
RUT RUT1005 0402(1005) 1/8 ±1% 0.100~0.976Ω -55~155℃
RUT1608 0603(1608) 1/4 ±1%
RUT2012 0805(2012) 1/3 ±1%
RUT3216 1206(3216) 1/2 ±1%
RUT3225 1210(3225) 2/3 ±1%
RUT5025 2010(5025) 1 ±1%
RUT6432 2512(6432) 1 ±1%
RJ *RJ0816 0306(0816) 1/2 ±1% 0.005~0.020Ω -55~155℃
RJ1220 0508(1220) 1 ±1%
RJ1632 0612(1632) 1 ±1%
RJ2037 0815(2037) 1 ±1%
RJ3264 1225(3264) 2 ±1%

电流感测电阻 (金属类型)

电源管理所需的主要元件，用于电流感测的超低电阻。采用减少电阻值误差的电极结构。作为大电金属类型的分流电阻，是具备高额定电力和低温度系数的产品。

应用领域
CPU、DC-DC转换器、逆变器电源供应装置、移动设备、BMS(电池管理系统)
Product Search

  • 1. 电阻
  • 2. 保护体
  • 3. 电极
  • 4. 镀层
优异的热传导度​
防止电路内部的温度上升​
优秀的机械特性​
高可靠度的机械强度
低T.C.R.
可用于精密测定、位移的位移传感器
Lineup
CSR (Metal)
*Under development
CSR (Metal) Lineup - Series, Type, Size Inch / (mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Series Type Size
Inch/(㎜)		 Feature Watt
[W]		 Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RLC RLC6432 2512(6432) 2,3 ±1% 0.0005 ~ 0.005Ω -65~170℃
RLP *RLP3216 1206(3216) 1 ±1% 0.001 ~ 0.005Ω -55~170℃
RLP2012 0805(2012) 0.5,1 ±1% 0.001 ~ 0.005Ω -55~170℃
RLP1220 0508(1220) 1 ±1% 0.001 ~ 0.002Ω -55~170℃
RLP1608 0603(1608) 0.5,1 ±1% 0.001 ~ 0.005Ω -55~155℃
RLE *RLE6432 2512(6432) Ambient : 3~4W
Terminal : 5~6W		 ±1% 0.0003 ~ 0.005Ω -65~170℃
*RLE1050 3921(10050) Ambient : 5~8W
Terminal : 5~12.5W		 ±1% 0.0002 ~ 0.003Ω -65~170℃

抗硫化电阻

贴片电阻电极材料主要使用银(Ag)，银(Ag)容易被硫(S)腐蚀，逐渐变成硫化银(Ag₂S)。硫化银(Ag₂S)是绝缘体，使两端电极之间电流无法流动，在恶劣环境中使用的电子设备必须使用抗硫特性的电阻。三星电机通过自主的材料和设计技术，研发出抗硫腐蚀的材料，提供具有耐硫特性的抗硫化电阻。

应用领域
长期可靠性电子设备、服务器系统(存储模块/HDD)、网络设备​
Product Search

  • 1. 电极 (Ag-Pd)
  • 2. 保护体
  • 3. 镀层 (镍)
  • 4. 镀层 (锡)
确保比国际标准 ASTM B 809-95 更强的耐硫特性​
通过自主材料技术，实现通过最高水平腐蚀条件(105℃/720hr)的产品
各种尺寸组成
提供尺寸从0603到6432mm以及排阻，多种电阻组成
Lineup
Anti-Sulfur General
Anti-Sulfur General Lineup - Type, Size Inch / (mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Type Size
Inch/(㎜)		 Feature Watt
[W]		 Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RCS0603 0201(0603) 1/20 ±1%
±2%
±5%		 1 ~ 10MΩ -55~125℃
RCS1005 0402(1005) 1/16 ±0.5%
±1%
±2%
±5%		 -55~155℃
RCS1608 0603(1608) 1/10
RCS2012 0805(2012) 1/8
RCS3216 1206(3216) 1/4
RCS3225 1210(3225) 1/3
RCS5025 2010(5025) 2/3
RCS6432 2512(6432) 1
Anti-Sulfur Array
Anti-Sulfur Array Lineup - Type, Size Inch / (mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Type Size
Inch/(㎜)		 Feature Watt
[W]		 Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RPS102P 0404(1010) 1/16 ±5% 1 ~ 1MΩ -55~155℃
RPS104P 0804(2010)
RFS062P 0302(1010) 1/32 ±5% 10 ~ 1MΩ -55~125℃
RFS064P 0502(2010)
RMS102P 0404(1010) 1/16 ±5% 1 ~ 1MΩ -55~155℃
RMS104P 0804(2010)

高功率电阻

能够处理更高功率的产品，相比一般电阻高出3倍的高功率特性。通过独立的技术增加了电阻的宽度和长度，实现了比其他公司更强的特性。

应用领域
小型电子设备、同样尺寸中要求高可靠性的产品、智能手机的无线充电、网络、服务器、车用​
Product Search

  • 1. 电极 (Ag)
  • 2. 电阻
  • 3. 保护体
  • 4. 溅射 (镍铬)
  • 5. 镀层 (镍)
  • 6. 镀层 (锡)
[嫁接新核心技术实现最高特性]
电阻面积扩大
通过印刷和激光切割使电阻面积扩大3倍
电阻长度扩大​
在电阻上使用蛇纹切割工艺，增长电阻长度​
实现电阻的均一厚度
通过独立印刷工艺实现均一的电阻体厚度​
Lineup
High Power
High Power Lineup - Type, Size Inch / (mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Type Size
Inch/(㎜)		 Feature Watt
[W]		 Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RCW0603 0201(0603) 1/10 ±0.5%
±1%
±2%
±5%		 1 ~ 10MΩ -55~125℃
RCW1005 0402(1005) 1/5
RCW1608 0603(1608) 1/4 -55~155℃
RCW2012 0805(2012) 1/2
RCW3216 1206(3216) 1

完全无铅电阻

一般电阻内，导电粒子和玻璃中含有铅（Pb）。本公司不仅是芯片，连原材料也满足RoHS标准的完全无铅电阻。包含电特性，所有特性都是与一般电阻相等的环保产品。

应用领域
智能手机、网板电脑、可穿戴设备、显示器、电脑、数字电视、相机、存储模块、游戏机、DC-DC转换器
Product Search

  • 1. 电极 (Ag)
  • 2. 电阻体
  • 3. 保护体​
  • 4. 溅射 (镍铬)
  • 5. 镀层 (镍)
  • 6. 镀层 (锡)
体现无铅电阻环保产品​
Total Pb free 친환경 제품 구현에 대한 Table
各种尺寸组成​
提供尺寸从0402到6432mm以及排阻和耐硫品
与一般产电阻相同的产品构成​
Lineup
Pb free General
Pb free General Lineup - Type, Size Inch / (mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Type Size
Inch/(㎜)		 Feature Watt
[W]		 Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RH0402 01005(0402) 1/32 ±1%
±2%
±5%		 1 ~ 1MΩ -55~125℃
RH0603 0201(0603) 1/20 1 ~ 10MΩ
RH1005 0402(1005) 1/16 ±0.5%
±1%
±2%
±5%		 -55~155℃
RH1608 0603(1608) 1/10
RH2012 0805(2012) 1/8
RH3216 1206(3216) 1/4
RH3225 1210(3225) 1/3
RH5025 2010(5025) 2/3
RH6432 2512(6432) 1
Pb free Array
Pb free Array Lineup - Type, Size Inch / (mm), Element (mm x n), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Type Size
Inch/(㎜)		 Element
(㎜ x n)		 Feature Watt
[W]		 Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RMH062P 0302(0806) 0603 x 2R 1/32 ±5% 10 ~ 1MΩ -55~125℃
RMH064P 0502(1406) 0603 x 4R
RFH062P 0302(0806) 0603 x 2R
RFH064P 0502(1406) 0603 x 4R
RMH102P 0404(1010) 1005 x 2R 1/16 ±1%
±2%
±5%		 1 ~ 1MΩ -55~155℃
RMH104P 0804(2010) 1005 x 4R
RKH102P 0404(1010) 1005 x 2R
RKH104P 0804(2010) 1005 x 4R
RPH102P 0404(1010) 1005 x 2R
RPH104P 0804(2010) 1005 x 4R
Pb free Anti-Sulfur General
Pb free Anti-Sulfur General Lineup - Type, Size Inch / (mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Type Size
Inch/(㎜)		 Feature Watt
[W]		 Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RHS0603 0201(0603) 1/20 ±1%
±2%
±5%		 1 ~ 10MΩ -55~125℃
RHS1005 0402(1005) 1/16 ±0.5%
±1%
±2%
±5%		 -55~155℃
RHS1608 0603(1608) 1/10
RHS2012 0805(2012) 1/8
RHS3216 1206(3216) 1/4
RHS3225 1210(3225) 1/3
RHS5025 2010(5025) 2/3
RHS6432 2512(6432) 1
Pb free Anti-Sulfur Array
Pb free Anti-Sulfur Array Lineup - Type, Size Inch / (mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Type Size
Inch/(㎜)		 Feature Watt
[W]		 Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RFHS062P 0302(1010) 1/32 ±5% 10 ~ 1MΩ -55~125℃
RFHS064P 0502(2010)
RPHS102P 0404(1010) 1/16 ±5% 1 ~ 1MΩ -55~155℃
RPHS104P 0804(2010)
